Instrument Cluster

Instrument clusters are vital for delivering real-time vehicle data and enhancing the driver experience. They integrate critical information such as speed, fuel levels, diagnostics, etc. with advanced features like navigation, infotainment, and driver-assistance alerts, providing a seamless connection between the driver and the vehicle.

At GMS, we specialize in designing cutting-edge instrument clusters for both electric and conventional vehicles, offering high-resolution displays and customizable features. Our solutions include options such as monochrome/colour segmented LCD, TFT, and OLED displays. With extensive experience in designing both cost-effective and high-end clusters, we ensure our products meet the diverse needs of modern vehicles, from basic displays to complex digital cockpits.

GMS also leverages Android, Android Automotive, and Automotive Grade Linux (AGL)-based platforms to create highly configurable, feature-rich instrument clusters. Our solutions seamlessly integrate with VCUs, telematics, and infotainment systems, ensuring compatibility with next-generation vehicle technologies.

Where We Can Support You?

Application Areas

Vehicle Applications

2W / 3W
Passenger Car
Truck & Bus
Off Highway-Equipment

Platform Solutions

Digital Cockpit Platform Display
SDV Platform Display Interface
ADAS Platform Display Interface

Solutions

Display Types

Colour TFT / OLED Graphical
Colour Segment LCD Cluster
Monochrome Segmented LCD
Hybrid Segmented LCD + TFT

Solution Types

Low-cost IO and CAN-based Segmented LCD Cluster
Full graphical and configurable TFT/OLED Cluster
Instrument Cluster with Integrated VCU and/or Telematics

Technologies

Hardware Solutions

Low-end CAN-based LCD solutions
Medium-end CAN-based TFT solutions
High-end multicore OS-based solutions with CAN/LIN/Ethernet
VCU integrated platforms
Telematics integrated platforms

Software Solutions

Legacy software solutions
Android Automotive-based solutions
Automotive Grade Linux based solutions
QT + Linux based solutions
SDV / ADAS feature integration

Why Choose GMS Instrument Clusters (IC)?

Customizable Display Options

GMS offers a range of display technologies, from color TFT/OLED to monochrome segmented LCD, meeting specific aesthetic and performance requirements for different vehicles.

Seamless Integration

Our instrument clusters can integrate with infotainment, vehicle control units, and telematics, creating a unified, interactive experience for drivers.

User-Centric Design

With customizable UI/UX designs, our clusters can display vehicle diagnostics, navigation, and safety alerts, offering an intuitive and responsive interface.

Proven Durability

Our clusters undergo extensive testing, including IP65/IP67 waterproofing and thermal optimization, ensuring durability and performance in rugged conditions.

Case Studies

Graphical TFT Cluster

This TFT cluster solution utilizes a high-resolution OLED screen with advanced connectivity options, making it ideal for passenger vehicles with high display and performance demands.

Application Area:

4-Wheelers - Passenger vehicles needing advanced display and connectivity.

Key Features:

Display: 2000 x 1200 resolution OLED screen with ~233 PPI.
Audio System: DTS 48-channel equalizer with 5.1 channel audio output.
Connectivity: Android Auto, Apple CarPlay, Radio, 4G LTE, GPS, WiFi, Bluetooth, Gyroscope, CAN interfaces.
Performance Optimization: Low latency graphics rendering with sub-50ms response time.

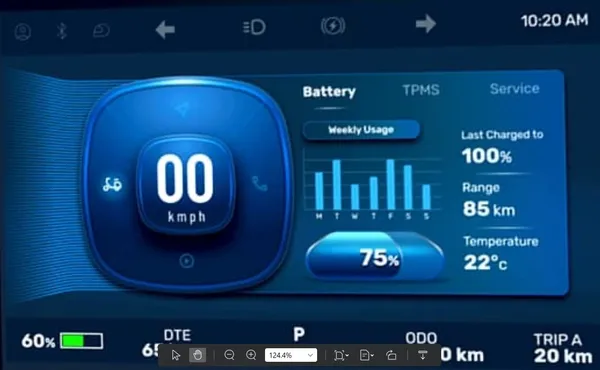

2Wh TFT Instrument Cluster

This TFT instrument cluster is tailored for electric bikes, offering customizable graphics, connectivity, and optional navigation and multimedia features.

Application Area:

Electric Bikes - Real-time information and connectivity for e-bikes.

Key Features:

Display: Full TFT with customizable graphics for enhanced user engagement.
Connectivity: WiFi and Bluetooth for mobile app communication.
Integrated VCU Functionality: Combines cluster and VCU capabilities.
Navigation: Real-time turn-by-turn navigation display.
Advanced Features: Optional 4G, GPS, audio player, and call functionalities.

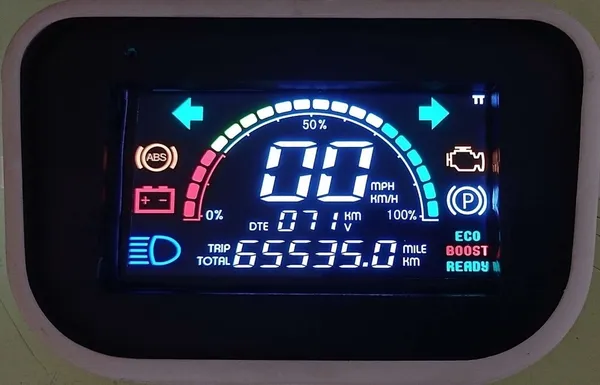

Colour Segmented LCD Cluster with Integrated VCU

This low-cost instrument cluster features a segmented color LCD, providing essential vehicle information along with integrated VCU capabilities.

Application Area:

Two-Wheelers - Ideal for motorcycles and scooters.

Key Features:

Display: Low-cost segmented color LCD for basic vehicle information.
Integrated VCU Functionality: Supports safety logic, interlocks, mode control, and thermal management.
Communication Interfaces: CAN and Bluetooth for real-time data exchange.
Customizability: Multiple LCD design layouts available for tailored implementations.
